LENOVO

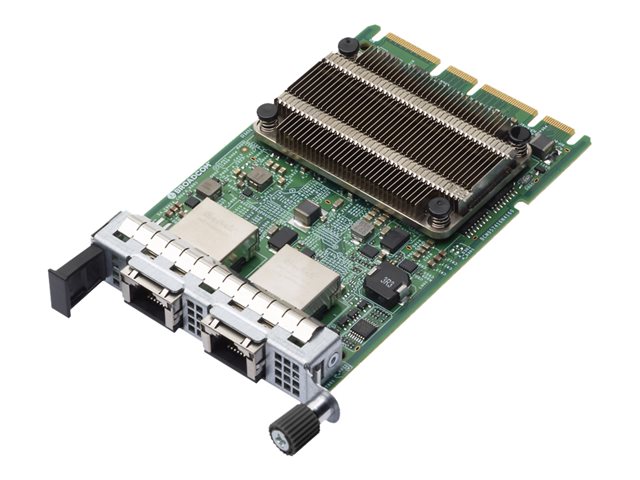

LENOVO ThinkSystem Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter

4XC7A08236LENOVO
10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling.The OCP adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard service processor. This support enables the sharing the network interface with the service processor and the operating system, thereby eliminating the need for a separate management network.
€30800 / 60240 лв.
Поръчка по телефона
Изпрати запитване
Добави в любими
Enhanced connectivityThe Lenovo ThinkSystem Broadcom 57416 network adapter offers dual RJ-45 connectors, providing robust connectivity options for both Gigabit and 10 Gigabit Ethernet networks. This versatility ensures seamless integration into existing network infrastructures, enhancing data transfer rates and network efficiency.Advanced networking featuresWith support for a wide range of features such as Data Center Bridging Exchange (DCBX), RDMA over Converged Ethernet (RoCE), and Virtual Extensible LAN (VXLAN), this network adapter is designed to meet the demands of modern data centers. Features like Large Send Offload (LSO) and Receive Side Scaling (RSS) optimize data flow, reducing CPU load and improving overall system performance.Comprehensive standards complianceThe Broadcom 57416 adheres to numerous industry standards, including IEEE 802.3an for 10 Gigabit Ethernet and IEEE 802.1Qaz. This compliance ensures a high level of reliability and interoperability with a wide range of network equipment and systems, making it a versatile choice for diverse IT environments.
Спецификации
  • Номер на производител
    4XC7A08236
  • Модел
    Network adapter
  • Технология на свързване
    Wired
  • Интерфейс
    2 x network - RJ-45
  • Конектор към компютър
    Open Compute Project mezzanine (OCP) 3.0
  • Стандарти
    IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Qbb, IEEE 802.1Qaz
  • Скорост
    10 Gbps
  • Портове
    Gigabit Ethernet / 10Gb Ethernet x 2
  • Форм фактор
    Plug-in card
  • Протоколи
    Gigabit Ethernet, 10 Gigabit Ethernet
  • Съвместими кабели
    Ethernet 1000Base-T, Ethernet 10GBase-T
  • Други
    IPv6 support, DCBX support, IPv4 support, LSO, LRO, RSS, SR-IOV, TSO, checksum offload support, MSI-X, GRE, TSS, iSCSI boot, RoCE, NC-SI, VXLAN, NVGRE, Mware NetQueue and Microsoft VMQ, DPDK, TruFlow, Interrupt coalescing, vSwitch Acceleration, tunnel-aware stateless offloads
  • Ширина
    7.6 cm
  • Гаранция
    Limited warranty - 1 year
