Спецификации

Поддържани процесори
AMD AM5 Ryzen
Чипсет
AMD B850
Слотове за разширение
PCI Express x16 slot (PCIEX16), integrated in the CPU: PCIe 5.0 x16 mode, PCIe 4.0 x8 mode, PCIe 4.0 x4 mode; Chipset: PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 слот
2 M.2 Socket 3 connectors
Интерфейс

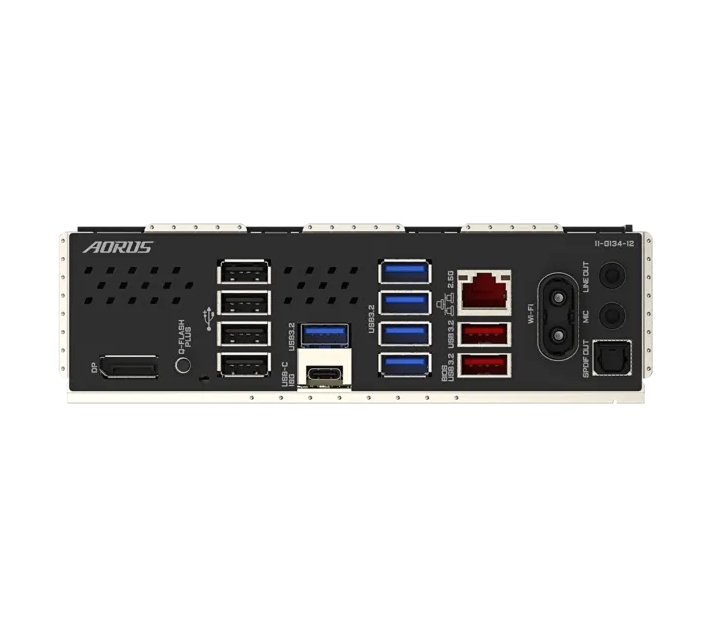

4 USB 2.0/1.1 ports, 5 USB 3.2 Gen 1 ports, 2 USB 3.2 Gen 2 Type-A ports, USB Type-C port, with USB 3.2 Gen 2 support, RJ-45, 2 antenna connectors (2T2R), 2 audio jacks, optical S/PDIF Out connector, DisplayPort, Q-Flash Plus button
Конектори
24-pin ATX main power connector, 8-pin ATX 12V power connector
Аудио
Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel; Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel
BIOS
256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм фактор
mATX
Операционна система
Support for Windows 11 64-bit, Support for Windows 10 64-bit
Гаранция
36 месеца
