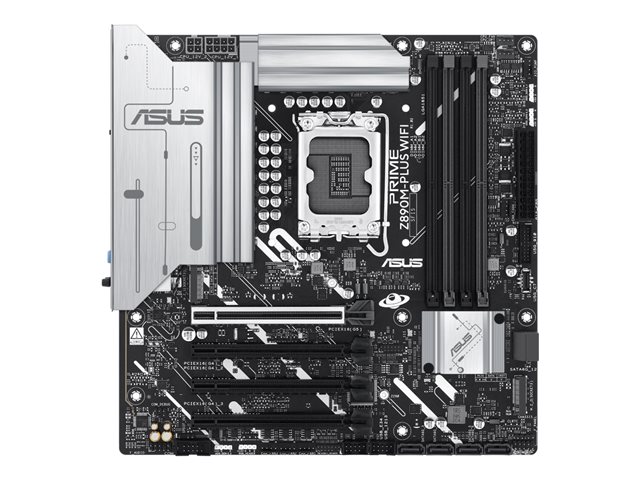

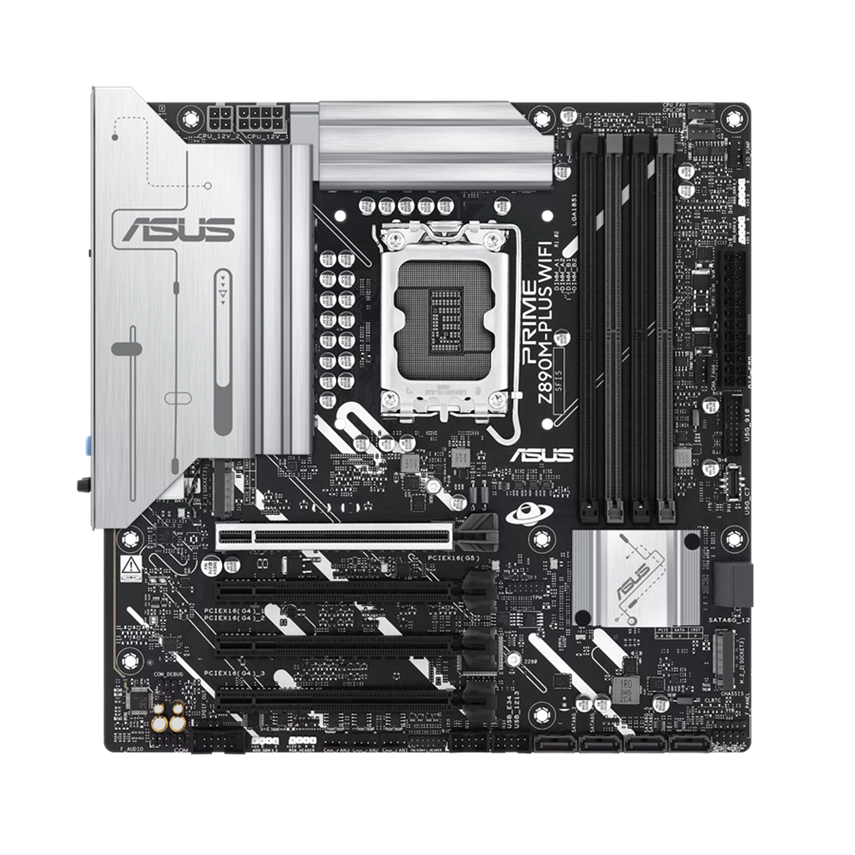

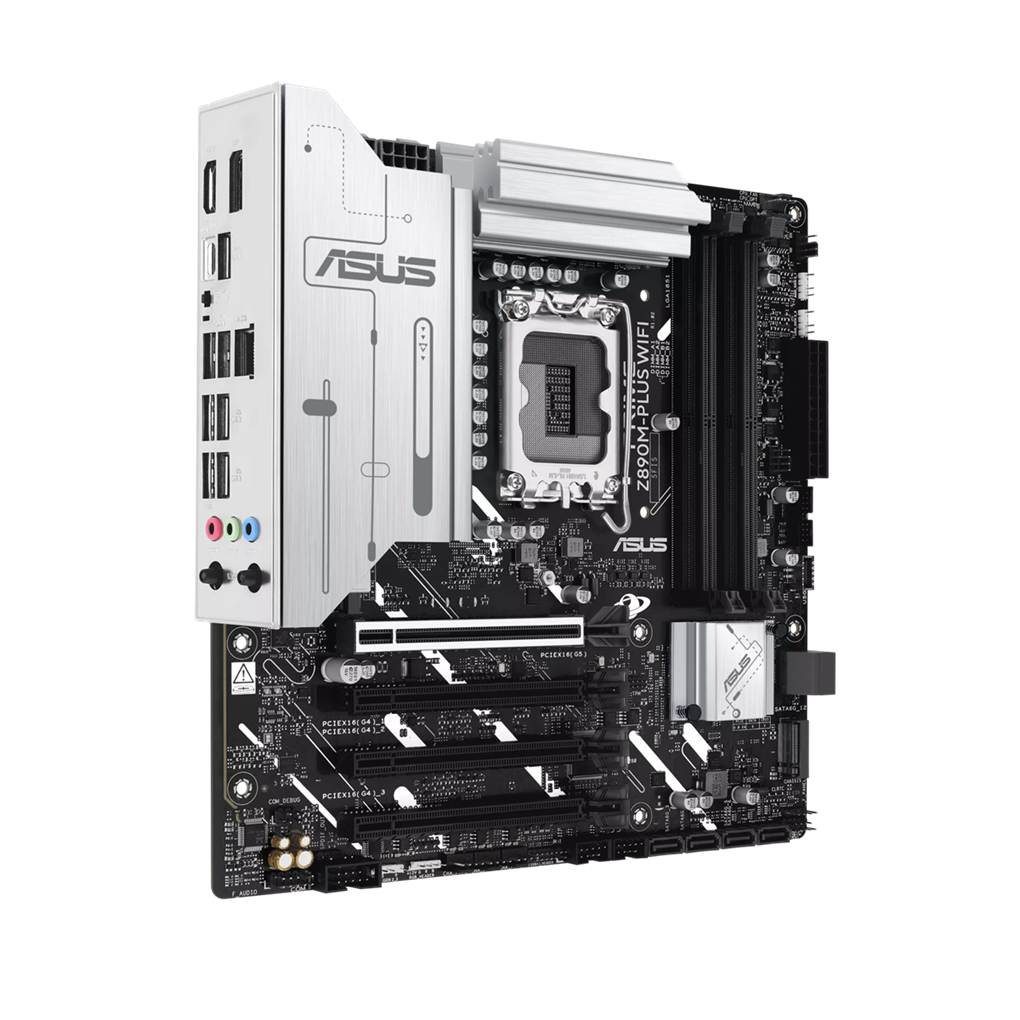

Спецификации

Производител
ASUS
Партиден номер
90MB1J80-M0EAY0
Сокет
LGA1851 Socket
Поддържани процесори
(supports Intel Core Ultra processors (Series 2))
Чипсет
Intel Z890
Слотове за разширение
1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x16 (x1 mode) 3 x M.2 socket (2280 M.2 slot)
Сторидж слотове
SATA-600 -connectors: 6 x 7pin Serial ATA PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Интерфейс USB, audio
1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPI - header 1 x Thunderbolt 4 - header 1 x SPDIF out - header

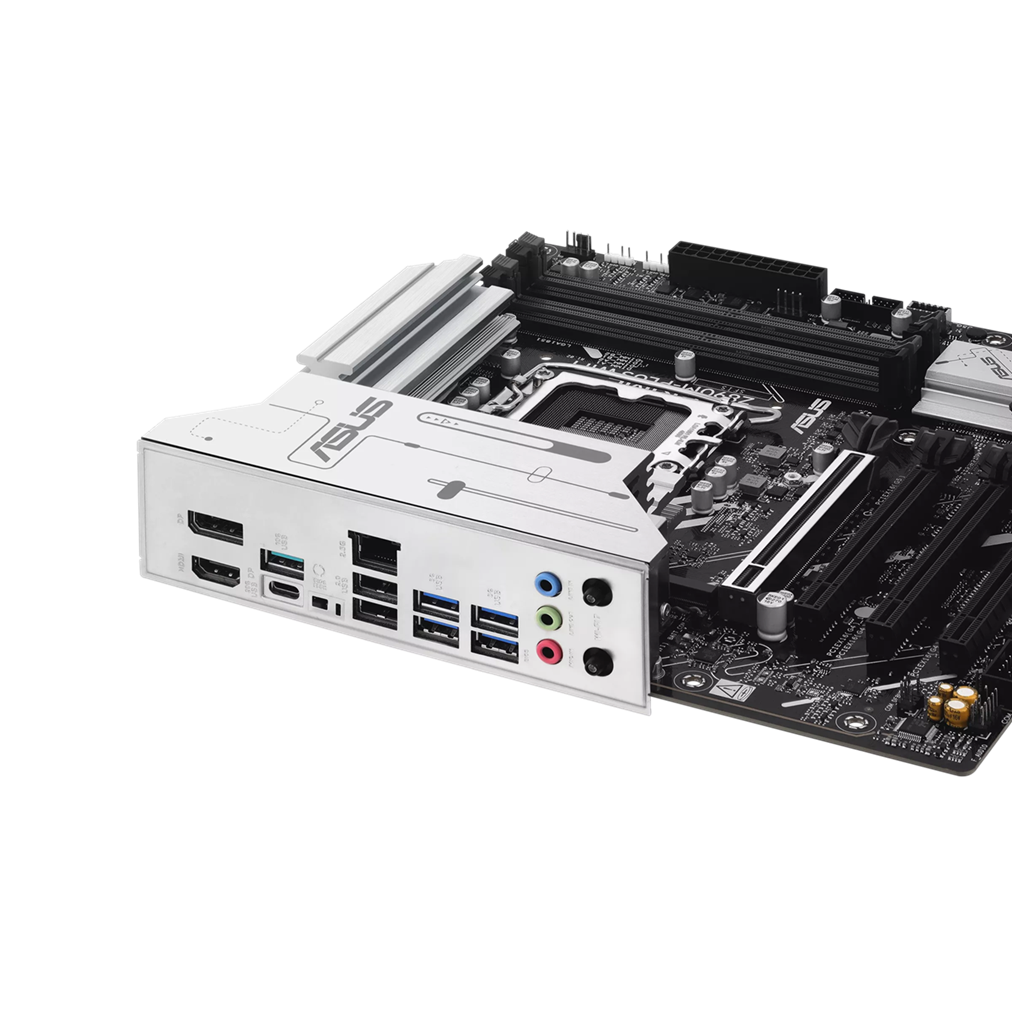

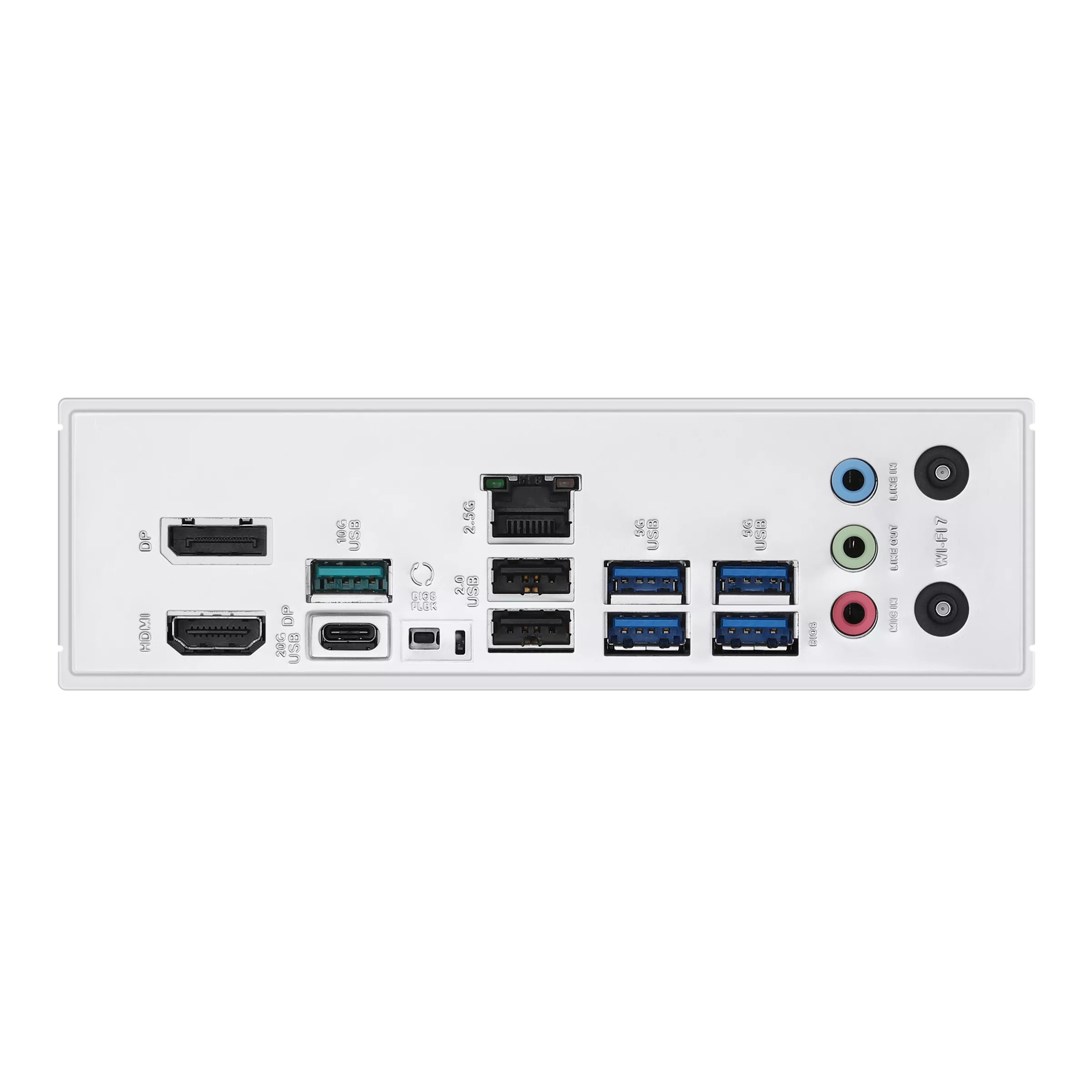

Интерфейс
1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2/DisplayPort 1 x LAN (2.5Gigabit Ethernet) 1 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 2 x aerial 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack
Конектори
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector

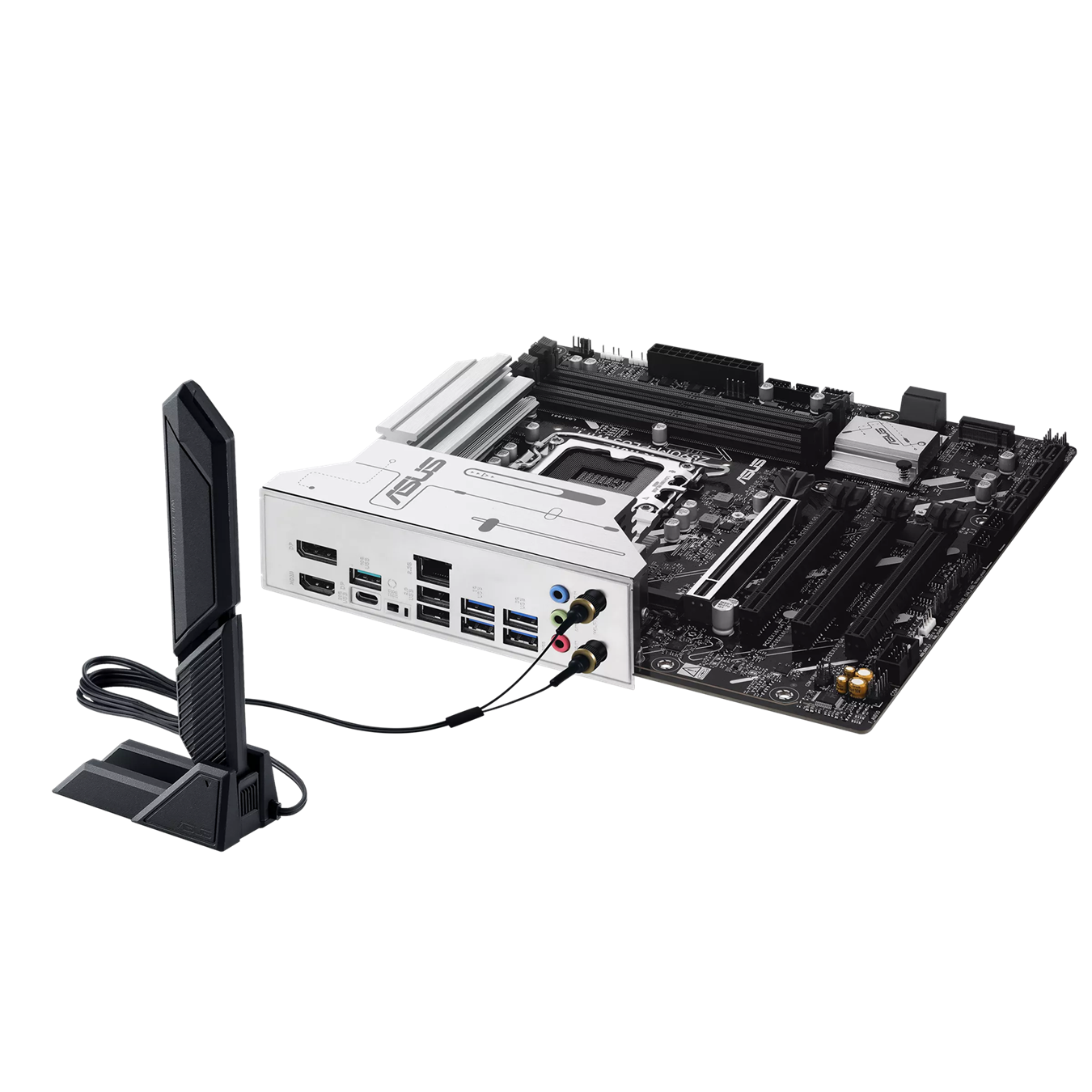

LAN
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet
BIOS
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Форм фактор
Motherboard - micro ATX
Поддържани памети
DDR5
Максимален обем инсталирана памет
192 GB
Честота на паметта
4333 MHz (O.C.)
Други
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
